Large Igneous Provinces and the Release of Thermogenic Volatiles from Sedimentary Basins

1811-5209/23/0019-0282$2.50  DOI: 10.2138/gselements.19.5.282

Keywords: Volcanic basin; sill; contact metamorphism; mineral reactions; thermogenic gas; proxies.

INTRODUCTION

Large igneous provinces (LIPs) are characterized by high magma fluxes from the deep Earth to the surface via extensive transcrustal plumbing systems that alter the thermomechanical structure of the crust (e.g., Black et al. 2021). In many examples of continental LIPs, the magma passed through crystalline rocks and a cover of sedimentary basins. Such sedimentary basins invaded by basaltic sills and dykes (known as volcanic basins) may be deeper than 10 km, and the volume of igneous intrusions is often greater than the extrusive proportion of the LIP (Fig. 1). Sills and dykes are widespread and interact with the host rocks, leading to contact metamorphism and rapid devolatilization for some lithologies (e.g., Svensen et al. 2004, 2009; Ganino and Arndt 2009). Under these circumstances, the generated fluids are dominated by H₂O and carbon-bearing species that increase the aureole pore pressure, in some cases, ultimately leading to explosive degassing to the surface via hydrothermal vent complexes or breccia pipes (Figs. 1 and 2; Manton et al. 2022). Key examples of LIPs and volcanic basins formed over the past 300 My include the Karoo-Ferrar LIP (the Karoo Basin), the Central Atlantic magmatic province (basins in Brazil and the United States), the Siberian Traps (the Tunguska Basin), the North Atlantic igneous province (basins along the rifted margins of Greenland, British Isles, and Norway), the Parana-Etendeka LIP (basins in Southern Africa and South America), the Emeishan LIP (the Sichuan Basin), the High Arctic LIP (the Sverdrup Basin and the Barents Sea basins), and the Skagerak-centered LIP (basins across central and northern Europe, including in the Oslo Rift).

LIP flood basalt volcanism can lead to extensive CO₂ degassing. However, the total mass, fluxes, and δ¹³C signature of the carbon released from primary LIP magmas are poorly constrained, and it remains debated whether such fluxes are sufficient to account for the isotopic signals and other markers of environmental perturbation observed in the sedimentary record. These uncertainties have led researchers to propose thermogenic release from intruded sediments as an important additional source of volatiles (e.g., Svensen et al. 2004). This means that, in terms of understanding carbon cycle perturbations related to LIPs, fully constraining the igneous versus thermogenic contributions is a key goal. This is, of course, in conjunction with ongoing efforts to robustly quantify alternative non-magmatic carbon sources such as gas hydrates (e.g., Gutjahr et al. 2017).

Understanding the interactions between magma and sedimentary rocks is challenging. Outcrop samples of sills and metamorphic aureoles are important sources of information, but are often difficult to access, deeply weathered, and/or include only a small number of localities over the vast scale of a LIP (e.g., Heimdal et al. 2018). On the other hand, boreholes drilled through sills and contact aureoles may provide well-preserved samples and the spatial coverage needed to draw reliable conclusions regarding both igneous and thermogenic volatile volumes, but drilling operations are expensive and therefore limited.

Another aspect of volcanic basins is that sedimentary rocks may contaminate magmas and increase the igneous volatile load. In-situ petrological investigations of sills have emphasized the role of sediment contamination of magmas via carbonate heating and melting (e.g., Wenzel et al. 2001). Sediment melting is, in most cases, restricted to sediment xenoliths, as aureole heat transport is usually efficient and, therefore, country rock melting temperatures are not exceeded. For example, for a basaltic sill of 1100 °C emplaced at 4 km depth (100 °C ambient temperature in a normal geothermal gradient), the maximum aureole temperature close to the sill is approximately 600 °C (combined sill and background temperature divided by two). This is not high enough to initiate melting. Notable exceptions occur during prolonged magma flow in sheet intrusions, when the sill and background countryrock temperature is high, or when the sills are emplaced in rocks with low thermal conductivity, such as organic-rich shale and coal (Furlong et al. 1991; Aarnes et al. 2010).

In addition to field studies, geochemical modeling of magma–sediment interactions and experiments can yield important insights into these processes. However, such studies are limited because thermodynamic data are sparse for key intruded non-silicate materials such as carbonates, coal, organic matter, and evaporitic sulfates and halides. Direct experimental investigation of magma–sediment interaction (using a high pressure–temperature apparatus) has so far largely been restricted to studies involving magmatic assimilation of shale, but are a promising route for future insights (e.g., Deegan et al. 2022).

In this short review, we focus on the two most volumetrically important aspects of the shallow parts of LIPs: the sills and their contact aureoles. The main themes relate to how the sedimentary rock devolatilizes during heating, the carbon geochemistry of the contact aureoles, the challenges related to sedimentary proxies for LIP emplacement, and the upscaling of igneous and thermogenic gas volumes from single localities to LIP-scale.

PETROLOGY AND GEOCHEMISTRY OF CONTACT METAMORPHISM

Contact metamorphism of sedimentary rocks is ongoing today in many places, and the resulting hydrothermal activity can be studied in detail. Examples include the spreading axis and basins from the Gulf of California and northwards into the USA, and in volcanic arcs such as in Indonesia. In these settings, the challenge is often that we have access to the fluids released at, or near, the surface— but seldomly those at the deep-seated intrusions or contact aureoles. These active hydrothermal systems may have started 100–1000s of years ago, and the emitted water and gas sampled at the surface represent mixed igneous, metamorphic, and sedimentary sources (e.g., Procesi et al. 2019). All of these factors make it challenging to relate the processes in modern settings to examples in the geological record that may be operating under significantly different conditions.

A fundamental aspect for understanding how contact metamorphism may contribute to environmental changes is to investigate the behavior of key elements in contact aureoles. When studying old contact aureoles, we have to use the remaining minerals and organic matter to reconstruct what happened during progressive metamorphism, from background diagenetic conditions to high-grade metamorphism, which in some cases, may reach conditions where the rocks start to melt. For example, a typical feature of aureoles that include significant shale, especially near the contacts with intrusions >10–15 m, is the metamorphic development of a hard and compact rock texture called hornfels. Hornfels rocks are typically lighter in color than the rest of the aureole and contain minerals stable at high temperature and little or no remaining organic matter (Fig. 3). In the case of pelite hornfels (e.g., metamorphic shale), the minerals may include biotite, andalusite, and cordierite. Interbedded shale-carbonate lithologies develop into calc-hornfels with calc-silicate minerals (e.g., epidote, plagioclase, and clinopyroxene). We can thus use hornfels as a visual proxy for high temperatures and near-complete carbon degassing from the inner aureole. Further from the intrusion, the effects of contact metamorphism are often harder to see and the outer aureole is thus sometimes referred to as the “cryptic” part of the aureole (Barton et al. 1991). Metamorphic effects are nonetheless evident from subtler textural and mineralogical changes, including a range of geochemical differences (e.g., variations in the content and composition of organic carbon).

Rock Types and Devolatilization

The type of sedimentary host rock and the metamorphic minerals present in a contact aureole contain information regarding the volatiles generated. As examples, we present a set of generalized reactions that take place in heated sedimentary rocks with a variety of bulk compositions (Table 1). Reactions (1) and (2) occur in carbonate-rich lithologies that contain quartz, where CO2 and calc-silicates (tremolite and diopside) are generated during prograde metamorphism. Thus, the calc-silicates represent mineral proxies for CO₂ generation together with a gradually lower carbonate content towards the intrusive contact. In rocks with different bulk rock compositions, other reactions take place. In black shale, the carbonate content is often low and the total organic carbon (TOC) content is high. This leads to a contrasting mineralogical evolution compared with carbonates (i.e., pelite mineralogy) and a dominance of silicate dehydration reactions (reaction 3). As the TOC content in black shale may reach 4–5 wt.% (more than ca. 10%–13% by volume) and often above 10 wt.%, the organic matter plays an important role in both gas and porosity generation. The TOC (kerogen) breaks down to thermogenic gas during metamorphism, with hydrocarbons, such as ethane and propane, formed in the low to middle temperature range (up to 250 °C). Marine kerogen devolatilization can be described by a generalized reaction (reaction 4A), leading to a rapid increase in the pore pressure in the aureole, triggering fracturing and fluid migration (Aarnes et al. 2010). In the case of coal metamorphism (reaction 4B), the oxygen content is initially low and results in formation of reduced gases, including hydrocarbons, during devolatilization. Methane and other hydrocarbons form continuously as temperature increases (e.g., Goodarzi et al. 2018). The lowering of TOC in shale contact aureoles during progressive metamorphism is a measure of gas generation (e.g., Aarnes et al. 2010), but is not as pronounced in coal aureoles, probably due to the large size of the TOC reservoir (>50 wt.%).

Black shales are often deposited during marine anoxic and/ or sulfidic conditions, resulting in high contents of metals and pyrite. Metals with an affinity for organic matter, such as Ni, Cd, V, Mo, and Hg, are potentially released from the kerogen during progressive metamorphism and follow the gas/fluid phase to the surface (see Svensen et al. 2023) or may precipitate in or around the aureole following reactions involving sulfides or organic matter. Reaction (5) describes the breakdown of sedimentary pyrite to metamorphic pyrrhotite in organic carbon-bearing shale, which liberates H2S. Reactions involving sulfur in contact metamorphic systems are complex, but likely add to the sulfur degassed from LIP magmas (Yallup et al. 2013).

Two of the LIPs associated with two of the biggest mass extinctions, the Siberian Traps and the CAMP, are characterized by abundant thick sills that were emplaced in evaporites (e.g., Svensen et al. 2009; Heimdal et al. 2018). The severity of the environmental disturbance during these LIP events may therefore be a direct result of the composition of the gases being generated in their respective volcanic basins (e.g., Svensen et al. 2009; Black et al. 2014). The affected evaporites range in composition from pure halite to pure anhydrite. Note that anhydrite is thermally stable during metamorphism, but may break down as a consequence of either dissolution in saline pore fluids or by sulfate reduction involving hydrocarbons (reaction 6). Finally, hydrocarbons in evaporites may break down to methyl groups and react with halogens to form halocarbons (CH3Cl, CH3Br; reaction 7), or react with sulfur to generate mercaptan (CH3SH), as suggested by heating experiments conducted on rocks from the Tunguska Basin (Svensen et al. 2009).

Gas Speciation and Carbon Isotopes

When seeking to understand how contact metamorphism may have affected past environments, the elements of interest include carbon, sulfur, halogens, and trace metals such as mercury. In sedimentary rocks, these elements primarily occur in organic matter, hydrocarbons, carbonates, sulfides, and sulfates. During metamorphism, the generated volatiles include reduced and oxidized species (CH₄/CO/CO₂, H₂S/SO₂, CH₃Hg/Hg0). In addition, both nitrogen- and halogen-bearing compounds, including CH₃Cl, may form from organic matter, as mentioned above.

Carbon isotopes are a very important part of understanding potential LIP-environment links and are input parameters into carbon cycle models used for comparison with global sedimentary carbon isotope records. During progressive metamorphism, the presence of organic matter in the contact aureole will result in fluids that contain CO₂ and CH₄ (e.g., such as reactions (1) and (2) in Table 1), which will affect carbon isotopic signatures. The isotopic composition of the generated carbon gas at a given temperature depends both on the carbon source (carbonate versus TOC, and the amount and type of TOC) and speciation (i.e., isotope fractionation differs between CH₄ and CO₂). Carbon dioxide generated from carbonates will inherit the isotopic signature of the host sediment, modified by a temperature-dependent fractionation. The result is thermogenic CO₂ with a δ¹³C value usually between −8‰ and −2‰. If the main organic source is marine algae, the gas will be dominated by CH4 with a δ₁₃C signature typically between −33‰ to −26‰, slightly 12C-enriched compared with the bulk rock TOC. Nonetheless, the thermogenic gas will still contain some CO₂ and potentially other hydrocarbons (e.g., ethane, propane). As the temperature in the aureole rises further, the generated gas will be increasingly enriched in dry gas (CH₄ and CO₂) instead of the higher hydrocarbons.

Experimental and theoretical studies have shown that a large isotopic fractionation occurs between CH4 and CO₂, decreasing with increasing temperature (see Kueter et al. 2019). Below 300 °C, corresponding to temperatures characteristic of the outer regions of contact aureoles, the ¹²C is enriched in CH4 by 25‰–35‰ compared with CO₂. At higher temperatures, the ¹²C/¹³C CO₂-CH₄ fractionation is less (around 12‰ at 600 °C). Together with the varying source composition of the TOC, this fractionation explains the typical coexisting low δ¹³C (CH₄) and high δ¹³C (CO₂) values of thermogenic gas. When studying contact aureoles, the gas is usually long gone and we have to focus on the remaining organic matter or graphite. Data reported from numerous case studies have shown that the aureole TOC in marine sediments has δ¹³C values within 2‰ of the values in the background unaltered sediment. Contact aureoles in coal show more complex δ¹³CTOC behavior compared with those in shales. The span in δ¹³CTOC in case studies from metamorphic coal ranges from −22‰ to −26‰ largely due to the presence of different types of organic matter (macerals), as shown by organic petrography (e.g., liptinite/ vitrinite/inertinite) (e.g., Sanders et al. 2023). This suggests that in contact aureoles, isotopically light gas (CH4 and higher hydrocarbons) is balanced by isotopically heavy gas (CO₂ and CO), which conserves the pre-metamorphic bulk rock δ¹³CTOC within a few per mil. Thus, the contact aureole δ¹³CTOC is likely not a proxy for thermogenic gas generation.

Overall, this means that we have to consider both the geochemical and petrological archive remaining in the aureole long after metamorphism has ceased, as well as theoretical and experimental studies on the evolution of gas speciation and isotope fractionation, from diagenetic to peak metamorphic conditions.

Aureole Parameters and Aureole Proxies

The typical parameters studied in contact aureoles are related to: 1) geochemical variation of elements towards the intrusions (TOC, δ¹³C of carbonates and TOC, element concentrations, organic pyrolysis); 2) temperature proxies (e.g., vitrinite reflectance and mineralogy); and 3) physical properties reflecting changes in mineralogy and textures (e.g., seismic velocities, density). In thermal models, theoretical TOC predictions are compared to measured TOC to tune the model outputs, and the predicted TOC loss is then converted to a mass of CO₂ (e.g., Iyer et al. 2018). Carbon dioxide generation from reactions involving carbonates may also be included in such models, but gas speciation is not. This means that the CO₂ to CH₄ ratio is poorly constrained both from a model and proxy perspective, and depends both on the initial kerogen composition and the oxygen fugacity during contact metamorphism. The gas generation in aureole models is a function of temperature, and the modeled aureole temperature is tuned to the calculated and measured vitrinite reflectivity. Moreover, although such models are made for sill– aureole systems, thermal models do not normally include fluid transport processes (e.g., Galerne and Hasenclever 2019). Data constraints on fluid flow models pose further challenges, as they require a comprehensive dataset of temperature proxies. Finally, the fate of the gases or fluids generated in contact aureoles is crucial for understanding the possible environmental consequences, as addressed later in this review. Other processes can alter thermogenic release rates even after volatile emission from the crust. For example, for submarine degassing, dissolution of soluble gases into aqueous solution may influence how much of the thermogenic gases eventually reach the atmosphere.

THE PROXY CHALLENGE

A critical issue with assessing the importance of LIP activity as a driver of environmental change is how to trace the effects of the release of volcanic and thermogenic gas to the ocean–atmosphere system. So far, no specific sedimentary proxies are available for thermogenic gas release and/or the formation of hydrothermal vent complexes in sedimentary basins. Several proxies are used for extrusive LIP activity. Tephra layers represent a near-field proxy and Os isotopes have been widely used to infer LIP-related weathering or LIP-associated hydrothermal activity (Percival et al. 2018 and references therein). Sedimentary Hg contents and isotopes have been used as a volcanic proxy in numerous studies during the past decade (e.g., Grasby et al. 2019 and references therein). Mercury has the advantage that volcanic emissions represent a major flux into the environment, and, thus, it can be used as a direct proxy of volcanic gas emission to the atmosphere. Moreover, its long atmospheric lifetime (6–18 months) offers the potential to detect global distributions (Pyle and Mather 2003). Prolonged periods of elevated volcanic activity, such as those that produced LIPs, can directly impact the Hg cycle, resulting in Hg enrichments in catchments well away from the source volcanism (Grasby et al. 2019). In the case of submarine degassing, Hg is rapidly scrubbed into the water column, restricting subsequent deposition to localities proximal to the source.

As a widespread marker potentially tracing igneous degassing processes, understanding the Hg proxy in terms of thermogenic LIP fluxes has particular relevance. The main depositional pathway for Hg into sediments in aqueous environments is associated with organic matter. Therefore, peaks in Hg/TOC (total organic carbon) ratios are often interpreted to reflect increases in Hg to the catchment, either through the enrichment of Hg in organic matter or via deposition through other pathways such as sulfides (Sanei et al. 2012). Importantly, the strong affinity to organic matter leads to Hg enrichments in organic-rich sediments, and the devolatilization of these TOC-rich strata during contact metamorphism may also liberate significant quantities of Hg that may make it to the atmosphere (Svensen et al. 2023). Therefore, far-field Hg enrichments cannot currently differentiate between volcanic and thermogenic Hg sources, unless there is a clear distinction in subaerial versus submarine degassing between volcanic and thermogenic sources in the LIP (e.g., Jones et al. 2019a).

Several studies have begun utilizing Hg isotopes to further develop this element’s potential as a volcanic proxy. Mercury is highly volatile and susceptible to changes in redox conditions, leading to several fractionation processes (e.g., Bergquist and Blum 2007). In particular, mass independent fractionation (MIF; e.g., Δ199Hg) signatures, have been cited as evidence for direct atmospheric deposition from several LIPs such as the Central Atlantic magmatic province (CAMP; Shen et al. 2022). However, this field of study is in its infancy, as there are several contemporaneous processes that might affect MIF values. It is thus unclear how contact metamorphism may affect the isotopic signature of Hg emissions volatilized and transported to the surface. In summary, there are currently no rigorous approaches that reliably discern between volcanic and thermogenic activity in the far-field proxy record.

THERMOGENIC EMISSIONS AND ENVIRONMENTAL CONSEQUENCES

LIPs and volcanic basins are a setting where elements may get mobilized and emitted to the atmosphere on very short geological timescales. Since the 1970s, degassing of CO₂ and SO₂ from LIP lavas has been regarded as a key process in modifying the climate and environment. Lava degassing is easy to visualize because it happens today and can be observed and studied, albeit on a much smaller scale than for LIPs. Contact metamorphic degassing is, on the other hand, much less studied and often associated with uncertainties regarding the volumes and fate of the gas. It is therefore interesting to compare thermogenic and igneous CO₂ estimates. The volcanic gas emissions from LIPs are often based on poorly constrained lava volumes, assumptions about the CO₂ mass per km3, and CO₂ isotopic compositions based on oceanic basalts. Due to the strong pressure dependence of CO₂ solubility in basaltic melt, it can start to exsolve at depths of 30–40 km. A common assumption is that CO₂ migrates together with the ascent of magma, potentially with an early and deep-seated CO₂ pulse prior to the main lava stage (e.g., Hernandez Nava et al. 2021). In such a scenario the atmospheric CO₂-release is not directly proportional to the erupted lava volume, and CO₂ may seep through country rocks or follow the magmatic plumbing system and interact with magma at shallower levels. The pathways and processes involved when igneous CO₂ is degassed from magma clearly deserve further attention and case studies. Keeping this in mind, we turn to the thermogenic estimates.

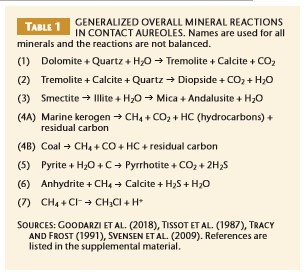

As presented earlier, many reactions contribute to metamorphic devolatilization (Table 1), and aureole geochemistry contains information that can be used to quantify the carbon, sulfur, and metals lost during metamorphism. We can use such measurements to upscale data from a single locality or borehole (i.e., a 1-m² column through the aureole) to the full volume of the sill–aureole system and, further, to the scale of the studied region or volcanic basin. Depending on the assumptions used, such upscaling is usually limited to yielding an upper limit of thermogenic gas generated and potentially released to the ocean or atmosphere. This method requires the contact aureole volume (area A × thickness h) and the amount of TOC (or other volatile) missing from the aureole in wt.%, FC (i.e., the lowering of the aureole TOC). The total mass of carbon, WC, produced in contact aureoles is: WC = FC × A × h × ρ , where ρ is the rock density (kg/m3). The area A is measured from seismic or field data. As a rule of thumb (there are notable exceptions, as mentioned earlier), the aureole has a width that equals the sill thickness on each side of the sill, i.e., double the sill volume. The thickness h of the contact aureole can thus be approximated from the sill volume or from field data associated with the contact aureole, such as TOC and vitrinite reflectivity data. The total mass of carbon produced, WC, can be converted to equivalents of methane (= WC × 1.34) and/or carbon dioxide (= WC × 3.66). This approach is simple with many assumptions and uncertainties, in particular regarding lateral heterogeneities and contact aureole volumes, but may be supplemented and further constrained by statistical methods (e.g., Jones et al. 2019b) and models that account for the heat transport by fluid flow in cases where the host rocks have high porosities (e.g., Galerne and Hasenclever 2019).

A key question is what happens to thermogenic gases following their migration out of the contact aureoles. Realistic scenarios include explosive release during hydrofracturing and venting, slower seepage and release at the surface (cf. the deep igneous degassing scenario mentioned above), or permanent storage at shallower basin levels. Numerous studies have shown that hydrothermal vent complexes (also known as breccia pipes) are common in volcanic basins. They provide direct evidence for rapid gas release to the atmosphere, often followed by prolonged seepage activity through the conduit (e.g., Svensen et al. 2004; Manton et al. 2022). Modeling studies have suggested that fracture generation and permeability (i.e., vent initiation) are at least three times more efficient in transferring gas to the surface than a scenario without venting such as seepage (Galerne and Hasenclever 2019). The scenario of permanent storage of thermogenic gas in reservoirs is, in cases such as the Karoo Basin and others, not considered significant due to the absence of major thermogenic gas accumulations. Furthermore, available seismic interpretations from volcanic basins show well-developed permeability pathways associated with sills and vents, supporting the hypothesis that thermogenic gas eventually migrated to the surface (Manton et al. 2022).

Figure 4 shows a summary of our review of degassing from LIPs. When combining estimates of contact aureole gas speciation, isotopic composition and volume, the results can be used in Earth system models to assess causal relationships between the LIP degassing augmented by thermogenic release, and atmospheric and climatic changes. Further constraints from high-precision dating of sills are needed in combination with statistical approaches to understanding sill emplacement and degassing (Jones et al. 2019b). In this way, the understanding of LIPs and the geological processes taking place during magma emplacement represents an increasingly robust background to studies of rapid global changes over timescales of centuries to millennia.

CONCLUSIONS

We summarize our review in four bullet points:

• Volcanic basins are a key setting that can shed new light on how LIPs have affected the environment via studies of magma–sediment interactions.
• Different sedimentary rock types are affected by the heat from sills and dykes in varying ways, but a series of fundamental reactions can be used to systematize these processes. For example, we use both organic and inorganic petrology and geochemistry to reconstruct the devolatilization history of contact aureoles.
• Current proxies in the sedimentary record for LIP gas release, such as mercury, cannot reliably distinguish between igneous and thermogenic sources, and there is a need to refine and develop new proxies.
• Upscaling estimates of thermogenic emission fluxes from sparse measurements and making comparisons to igneous degassing is important, but these improvements require more extensive field data and developments in our process understanding.

ACKNOWLEDGMENTS

We acknowledge support from the Norwegian Research Council (grant 263000 to M.T.J., and grant 223272 to H.H.S. and M.T.J. as part of the Centre for Earth Evolution and Dynamics). T.A.M. acknowledges funding from ERC consolidator grant (ERC-2018-COG-818717-V-ECHO). We thank Victoria Hovland and Caroline S. Hovland for making Figure 4A. Finally, we thank three anynomous referees for constructive comments, and Sverre Planke and Alexander Polozov for discussions and lasting enthusiasm.

Download supplemental file(s).

REFERENCES

Aarnes I, Svensen H, Connolly JAD, Podladchikov YY (2010) How contact metamorphism can trigger global climate changes: modeling gas generation around igneous sills in sedimentary basins. Geochimica et Cosmochimica Acta 74: 7179-7195, doi: 10.1016/j.gca.2010.09.011

Barton MD, Staude J-M, Snow EA, Johnson DA (1991) Aureole systematics. In: Kerrick DM (ed) Contact Metamorphism, Reviews in Mineralogy and Geochemistry, Volume 26. Mineralogical Society of America, Chantilly, pp 723-847, doi: 10.1515/9781501509612-017

Bergquist BA, Blum JD (2007) Mass-dependent and -independent fractionation of Hg isotopes by photoreduction in aquatic systems. Science 318: 417-420, doi: 10.1126/science.1148050

Black BA, Lamarque JF, Shields CA, ElkinsTanton LT, Kiehl JT (2014) Acid rain and ozone depletion from pulsed Siberian Traps magmatism. Geology 42: 67-70, doi: 10.1130/G34875.1

Black BA, Karlstrom L, Mather TA (2021) The life cycle of large igneous provinces. Nature Reviews Earth & Environment 2: 840-857, doi: 10.1038/s43017-021-00221-4

Deegan FM and 12 coauthors (2022) Magma–shale interaction in large igneous provinces: implications for climate warming and sulfide genesis. Journal of Petrology 63: egac094, doi: 10.1093/ petrology/egac094

Furlong KP, Hanson RB, Bowers JR (1991) Modeling thermal regimes. In: Kerrick DM (ed) Contact Metamorphism, Reviews in Mineralogy and Geochemistry, Volume 26. Mineralogical Society of America, Chantilly, pp 437-505, doi: 10.1515/9781501509612-013

Galerne CY, Hasenclever J (2019) Distinct degassing pulses during magma invasion in the stratified Karoo Basin—new insights from hydrothermal fluid flow modeling. Geochemistry, Geophysics, Geosystems 20: 2955-2984, doi: 10.1029/2018GC008120

Ganino C, Arndt NT (2009) Climate changes caused by degassing of sediments during the emplacement of large igneous provinces. Geology 37: 323-326, doi: 10.1130/G25325A.1

Goodarzi F, Gentzis T, Grasby SE, Dewing K (2018) Influence of igneous intrusions on thermal maturity and optical texture: comparison between a bituminous marl and a coal seam of the same maturity. International Journal of Coal Geology 198: 183-197, 10.1016/j.coal.2018.09.013

Grasby SE, Them II TR, Chen Z, Yin R, Ardakani OH (2019) Mercury as a proxy for volcanic emissions in the geologic record. Earth-Science Reviews 196: 102880, doi: 10.1016/j.earscirev.2019.102880

Gutjahr M and 8 coauthors (2017) Very large release of mostly volcanic carbon during the Palaeocene–Eocene Thermal Maximum. Nature 548: 573-577, doi: 10.1038/nature23646

Heimdal TH and 7 coauthors (2018) Largescale sill emplacement in Brazil as a trigger for the end-Triassic crisis. Scientific Reports 8: 141, doi: 10.1038/s41598-017-18629-8

Hernandez Nava A and 5 coauthors (2021) Reconciling early Deccan Traps CO2 outgassing and pre-KPB global climate. Proceedings of the National Academy of Sciences 118: e2007797118, doi: 10.1073/ pnas.2007797118

Iyer K, Svensen H, Schmid DW (2018) SILLi 1.0: a 1D numerical tool quantifying the thermal effects of sill intrusions. Geoscientific Model Development 11: 43-60, doi: 10.5194/gmd-11-43-2018

Jones MT and 10 coauthors (2019a) Mercury anomalies across the Palaeocene–Eocene Thermal Maximum. Climate of the Past 15: 217-236, doi: 10.5194/cp-15-217-2019

Jones SM, Hoggett M, Greene SE, Dunkley Jones T (2019b) Large igneous province thermogenic greenhouse gas flux could have initiated Paleocene–Eocene Thermal Maximum climate change. Nature Communications 10: 5547, doi: 10.1038/ s41467-019-12957-1

Kueter N, Schmidt MW, Lilley MD, Bernasconi SM (2019) Experimental determination of equilibrium CH4–CO2–CO carbon isotope fractionation factors (300–1200 °C). Earth and Planetary Science Letters 506: 64-75, doi: 10.1016/j. epsl.2018.10.021

Manton B and 9 coauthors (2022) Characterizing ancient and modern hydrothermal venting systems. Marine Geology 447: 106781, doi: 10.1016/j. margeo.2022.106781

Percival LME, Jenkyns HC, Mather TA, Dickson AJ, Batenburg SJ, Ruhl M, Hesselbo SP, Barclay R, Jarvis I, Robinson SA, Woelders L (2018) Does large igneous province volcanism always perturb the mercury cycle? Comparing the records of Oceanic Anoxic Event 2 and the end-cretaceous to other Mesozoic events. American Journal of Science 318: 799-860, doi. org/10.2475/08.2018.01

Procesi M, Ciotoli G, Mazzini A, Etiope G (2019) Sediment-hosted geothermal systems: review and first global mapping. Earth-Science Reviews 192: 529-544, doi: 10.1016/j.earscirev.2019.03.020

Pyle DM, Mather TA (2003) The importance of volcanic emissions for the global atmospheric mercury cycle. Atmospheric Environment 37: 5115-5124, doi: 10.1016/j. atmosenv.2003.07.011

Sanders MM, Rimmer SM, Rowe HD (2023) Carbon isotopic composition and organic petrography of thermally metamorphosed Antarctic coal: implications for evaluation of δ13Corg excursions in paleo-atmospheric reconstruction. International Journal of Coal Geology 267: 104182, doi: 10.1016/j. coal.2022.104182

Sanei H, Grasby S, Beauchamp B (2012) Latest Permian mercury anomalies. Geology 40: 63-66, doi: 10.1130/G32596.1

Shen J, Yin R, Algeo TJ, Svensen HH, Schoepfer SD (2022) Mercury evidence for combustion of organic-rich sediments during the end-Triassic crisis. Nature Communications 13: 1307, doi: 10.1038/ s41467-022-28891-8

Svensen H and 6 coauthors (2004) Release of methane from a volcanic basin as a mechanism for initial Eocene global warming. Nature 429: 542-545, doi: 10.1038/ nature02566

Svensen H and 6 coauthors (2009) Siberian gas venting and the end-Permian environmental crisis. Earth and Planetary Science Letters 277: 490-500, doi: 10.1016/j. epsl.2008.11.015

Svensen HH, Jones MT, Percival LME, Grasby SE, Mather TA (2023) Release of mercury during contact metamorphism of shale: implications for understanding the impacts of large igneous province volcanism. Earth and Planetary Science Letters 619: 118306, doi: 10.1016/j.epsl.2023.118306

Yallup C, Edmonds M, Turchyn AV (2013) Sulfur degassing due to contact metamorphism during flood basalt eruptions. Geochimica et Cosmochimica Acta 120: 263-279, doi: 10.1016/j.gca.2013.06.025

Wenzel T and 5 coauthors (2001) Contamination of mafic magma by partial melting of dolomitic xenoliths. Terra Nova 13: 197-202, doi: 10.1046/j.13653121.2001.00340.x

Supplemental Material. v19n5_Supplemental_file_Svensen.pdf
